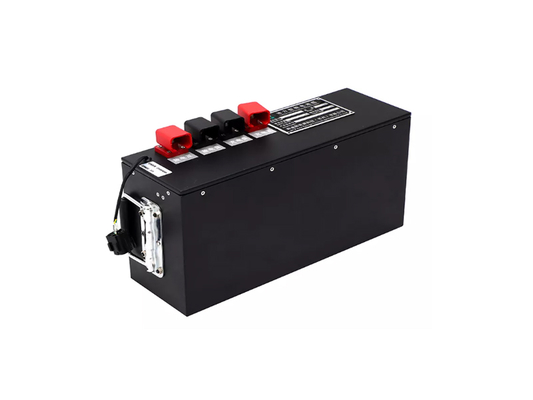

51.2v 75ah Smart LiFePo4 AGV Battery with Extended Life Cycle for Heavy Cargo Applications
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | JHOTA |
| 최소 주문 수량 | 5 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 판지 상자 |
| 배달 시간 | 20-30 일 |
| 지불 조건 | t/t |
| 공급 능력 | 500pcs |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 통신 기지 지국 전원 | 공칭 전압 | 51.2v |
|---|---|---|---|
| 공칭 용량 | 75AH | 사이클 수명 | 2000 번 |
| 보증 | 5 년 | ||
| 강조하다 | 51.2v 75ah LiFePo4 AGV battery,smart LiFePo4 battery for heavy cargo,extended life cycle AGV battery |
||
제품 설명
51.2v 42ah LiFePo4 AGV Batteries for Long-Haul and Heavy-Cargo Applications
Specification
| Item | Parameter |
|---|---|
| Nominal Voltage | 51.2V |
| Rated Capacity | Nominal Capacity: 75Ah,Minimum Capacity: 74Ah |
| Charging Voltage | 58.4V |
| Charging Method | Constant Current / Constant Voltage |
| Discharge Cut-off Voltage | 36.8V |
| Rated Charging Current | ≤40A |
| Maximum Continuous Charging Current | ≤75A |
| Internal Resistance | <100mΩ |
| Rated Discharge Current | ≤70A |
| Maximum Continuous Discharge Current | ≤150A (not exceeding 1 hour) |
| Overcharge Protection Voltage | 3.65±0.05V (adjustable) |
| Over-discharge Protection Voltage | 2.3±0.01V (adjustable) |
| Overcurrent Protection | Discharge overcurrent value: ≥240A |
| Short Circuit Protection |
Condition: External circuit short, Recovery: Disconnect short circuit |
| Operating Temperature Range | Charge: 0~55°C, Discharge: -20~55°C |
| Storage Temperature Range | Less than 7 days: 20~65°C |
| Weight | Approx. 30kg |
| Dimensions | Customizable |
Product Description:
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
Application:
1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy
for continuous movement and lifting.
2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).
3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with
minimal charging downtime.
